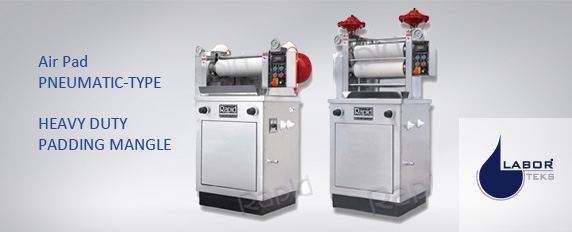

Air Pad
PNEUMATIC-TYPE
HEAVY DUTY PADDING MANGLE
Click here for more information about the product.ON-THE-SPOT SQUEEZE DYEING &/OR RESIN FINISHING TESTS
Conventional squeeze dyeing &/or resin finishing formulae have been applied directly by mill personnel through their many years' experience however, due to mass production schedules, they have unenough time to prepare such indispensable R&D formulae resulting in a long term bottleneck, increase in production costs and fair quality control.
In view of the above fact, we now offer our Heavy-Duty Padding Mangle to suit all mill requirements; they are available in either Vertical or Horizontal Version.
Applications
- Independent setting of pick up percentage equals to those from bulk production, precise Pad-Dyeing or Resin Finishing formulae can be obtained.
- Used in conjunction with our Mini-Dryer or Mini- Tenter, test samples showing precise test results and correct hand feel are obtained and offered to customers.
- This machine can be used for concentration selection of dyestuff and finishing auxiliaries, or to evaluate their quality, hence is a suitable appliance for dyehouses, auxiliary, pigment and other chemical manufacturing plants.
- To perform water repellent, flame retardation and/or coating tests as required.
- To perform and evaluate the degree of colour change and to prevent that it happens again during resin finishing and/or drying processes after change and to further avoid it happened during resin finishing and/or drying processes after dyeing processes.
Special Features
- Padding roller pressure adjustable independently on RHS/LHS thanks to precise pneumatically controlled diaphragm valves, permanently constant nip pressure are absolute at all times.

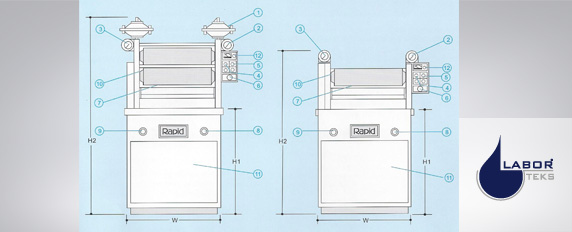

- Currently padding rollers are of 70° shore hardness (55° optional), pick up percentage obtained between 25% to 110% therefore can suit a wide range of fabric varieties. (See attached drawing).
- Once setting of the padding nip pressure has been done, no other re-adjustment will be needed.
- Safety devices include a safety rod plus an emergency touch ON/OFF button and a knee pedal which automatically stops the machine as well as releasing both padding rollers.
- Robust machine rack included, no need to prepare otherframe structure.
- Besides the main rack, remaining parts of machine frame are all made of stainless steel to protect the unit from chemical corrosion.
References
| FİRMA ADI | ŞEHİR | MAKİNE ADI | ADET |
|---|---|---|---|
| ABA KUMAŞ | K.MARAŞ | AIR-PAD P-A1 | 1 |
| ARGON KİMYA | ÇORLU | AIR-PAD P-B1 | 1 |
| ARIKAN MENSUCAT | K.MARAŞ | AIR-PAD P-A1 | 3 |
| ASLI TEKSTİL | DENİZLİ | AIR-PAD P-A1 | 1 |
| AYBOY TEKSTİL | İZMİR | AIR-PAD P-A1 | 1 |
| AYDIN TEKSTİL | AYDIN | AIR-PAD P-AO | 1 |
| BATI BASMA | İZMİR | AIR-PAD P-A1 | 1 |
| BENAR KİMYA | GEBZE | AIR-PAD P-A1 | 2 |
| BİLHAN TEKSTİL | BURSA | AIR-PAD P-B1 | 1 |
| BİSAŞ | BURSA | AIR-PAD P-A1 | 1 |
| ÇİÇEK TEKSTİL | DENİZLİ | AIR-PAD P-AO | 1 |
| DOKUZ EYLÜL ÜNİV. | İZMİR | AIR-PAD P-AO | 1 |
| EKSOY | ADANA | AIR-PAD P-AO | 1 |
| EMİN TEKSTİL | ÇORLU | AIR-PAD P-A1 | 1 |
| ENESLER TEKSTİL | ÇERKEZKÖY | AIR-PAD P-A1 | 1 |
| FAY TEKSTİL | ÇORLU | AIR-PAD P-A1 | 2 |
| FLOKSER | ISTANBUL | AIR-PAD P-AO | 1 |
| FUNİBO | DENİZLİ | AIR-PAD P-B1 | 1 |
| FUNİKA | DENİZLİ | AIR-PAD P-B1 | 1 |
| GEMSAN | ISTANBUL | AIR-PAD P-B1 | 1 |
| GÖKKUŞAĞI | UŞAK | AIR-PAD P-AO | 1 |
| GRUP TEKSTİL | ÇORLU | AIR-PAD P-A1 | 1 |
| HÜLS/STOCHAUSEN | ISTANBUL | AIR-PAD P-A1 | 1 |
| İPAŞ İPLİK | ISTANBUL | AIR-PAD P-B1 | 1 |
| KATİP ÇELEBİ ÜNİ. | İZMİR | AIR-PAD P-A1 | 1 |
| KEMİTEKS | ISTANBUL | AIR-PAD P-A1 | 1 |
| KİPAŞ-BOZKURT KONF. | ISTANBUL | AIR-PAD P-B1 | 1 |
| KORAT TEKSTİL | ÇORLU | AIR-PAD P-A1 | 1 |
| KÜÇÜKER TEKSTİL | DENİZLİ | AIR-PAD P-A1 | 1 |
| MOTİF ÖRME | ÇORLU | AIR-PAD P-A1 | 1 |
| NATUR TEKSTİL | DENİZLİ | AIR-PAD P-B1 | 1 |
| NASA TEKSTİL | MANİSA | AIR-PAD P-AO | 1 |
| ÖZNALBANT TEKSTİL | ÇORLU | AIR-PAD P-BO | 1 |
| ÖZŞAH ÖRME | ISTANBUL | AIR-PAD P-A1 | 1 |
| SOLE TEKSTİL | ISTANBUL | AIR-PAD P-A1 | 1 |
| SOLEY HAVLU | KAYSERİ | AIR-PAD P-BO | 1 |
| TEKİMSAN | ISTANBUL | AIR-PAD P-AO | 1 |
| TUGA KİMYA | ÇORLU | AIR-PAD P-A1 | 1 |
| ZEYNEP GİYİM | ÇORLU | AIR-PAD P-B1 | 1 |
| KİPAŞ | K.MARAŞ | AIR-PAD P-B1 | 2 |
| TORAMAN TEKSTİL | ÇORLU | AIR-PAD P-B1 | 1 |
| CHT KİMYA | İSTANBUL | AIR-PAD P-B1 | 1 |
| BİRKİM KİMYA | İSTANBUL | AIR-PAD P-B1 | 1 |
| ÇMS | K.MARAŞ | AIR-PAD P-A1 | 1 |
